Useage: 用途

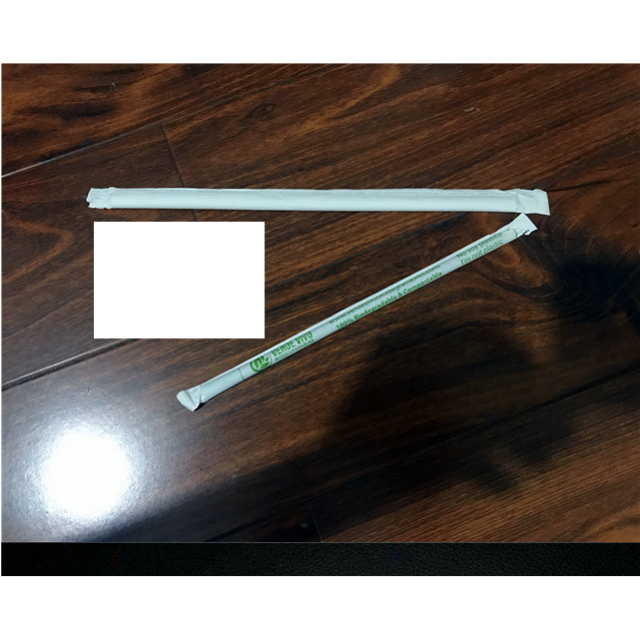

SL-SSDF machine is a kind of equipment that can pack the single drinking straw with paper With complete set of the machine is highly automatic, and has high packing speed. Also it can make delicate printing on wrapping paper.
SL-SSDF 机器适用于包装单只纸吸管，高速，自动，可带印刷。
Features：
1. Single packing. Filling, packaging in one operation. 单支包装，充填、包装一次完成。
2.None, single, double color, multi-color sprinting can be choose. 具有无、单、双色印刷(印刷精美)可供选择。
3.Automatic counting. In favor of secondary packaging.自动计数、批量报警，可方便二次包装。
4.The packing speed is adjustable. 包装速度可调。
Main Technical
|
型号 |
MODEL |
XS |
|
产量 |
Capacity |
500-700 pcs/min(straight), 400 pcs/min (Printed Material ) |
|
包装尺寸 |
Packing Size |
Diameter. 5-12mm, Length 130-270mm |
|
封口齿轮 |
Sealing Molds&gears |
1 set |
|
主电机 |
Main Driving Motor |
0.75kw, 3p, 380V, 50HZ |
|
包装材料 |
Wrapping Material |
27-55mm width Paper |
|
功能 |
Functions |
Automatic counter, quantity pre-set,、自动计数，包装数量设定 |
|
选择性配件 |
Optional Part |
Single, double color printing unit 1色或者2色印刷 |
|
重量 |
Weight |
300 kgs |
|
机器尺寸 |
Machine Dimension |
1.6x1.65x1.4m |
