用途Usage :

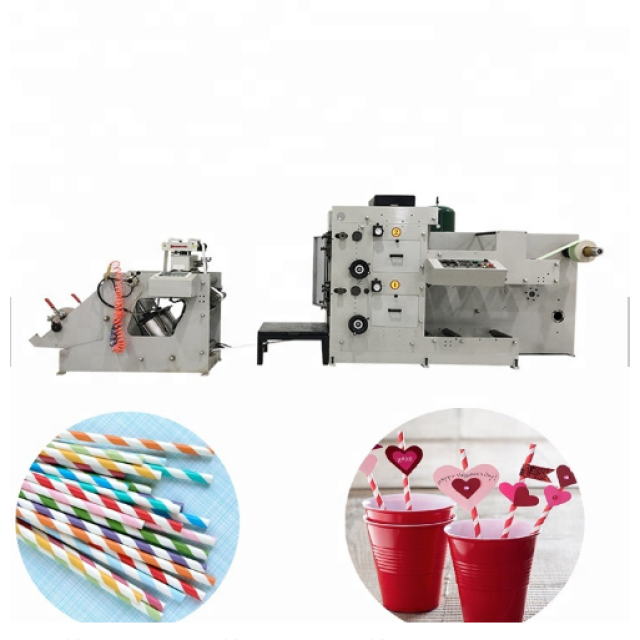

The machine is used for printing straw paper , Kraft paper, sticker , etc ,
本机适用于印刷吸管纸，牛皮纸，不干胶纸等
特点 Feature :
1. Adopt the anilox rollers to spread ink.
采用网纹辊传墨
2. Unwinding and rewinding are controlled by magnetism power brake, clutch.
放卷和收卷采用磁粉刹车和离合器控制
3. Printing unit adopt 360º for registration.
每个印刷组360度调整套色
4. Each Printing unit has one infrared to dry the device group.
每个印刷组有红外线干燥装置
5. The rubber roller can break away from automatically while parking, and running at a low speed, in order to avoid water being dried.
停车时墨辊可自动脱离，并低速运转，以防水墨干结.
6. The main motor is adopted the step less regulation of frequency conversion.
主电机采用进口变频无极调速.
主要技术参数 Main technical parameter :
|
型号 |
Model |
XS-320 |
|
印刷速度 |
Printing speed |
80m/min |
|
印刷颜色 |
Printing color |
2colors |
|
最大材料宽度 |
Max. Web width |
320mm |
|
最大印刷宽度 |
Max. Printing width |
310mm |
|
最大放卷直径 |
Max. Unwinding diameter |
1000mm |
|
最大收卷直径 |
Max. Rewinding diameter |
600mm |
|
印刷周长 |
Printing girth |
175-380mm |
|
套色精度 |
Precision of registration |
±0.10mm |
|
尺寸 |
Dimensions |
4500x1300x1500(mm) |
|
机器重量 |
Machine weight |
About 1400kg |
|
Description 描述 |
Quantity and Brand 数量和品牌 |
|
Main Motor 主电机 |
1 Set China 1台瑞安康远 |
|
Pneumatic Part 气动元件 |
1 Set GUANGDONG 1套广东产 |
|
Unwind tension controller 放卷张力控制 |
1pc, JIACHEN , CHINA 1 台 海泰 |
|
Rewind tension controller 收卷张力控制 |
1pc, JIACHEN , CHINA 1 台 海泰 |
|
Magnetic power brake 磁粉刹车 |
1pc, JIACHEN , CHINA 1台海泰 |
|
Inverter 变频器 |
1 pc, CHINA TAIWAN SHILIN 台湾士林 |
|
Contactor 接触器 |
CHINA CHINT 中国正泰 |
|
Temperature Control 温控仪 |
SHANGHAI YATAI 上海亚泰 |
|
Ceramic Anilox Roller 陶瓷网纹辊 |
SHANGHAI KESHUN 上海克顺 |
|
Standard configuration 标准配置 |
|
Ceramic Anilox roller x 1 Set 陶瓷网纹辊 1套 |
|
Web Guide 纠偏 |
|
IR Dryer IR 烘箱 |
|
China Unwinder magnetic powder brake and automatic tension controller 国产放卷磁粉刹车和恒张力控制 |
|
Automatic Material pneumatic lift and loading unit 放料气动上料 |
|
China Rewinder magnetic powder clutch and automatic tension controller 国产收卷磁粉离合器和恒张力控制 |
